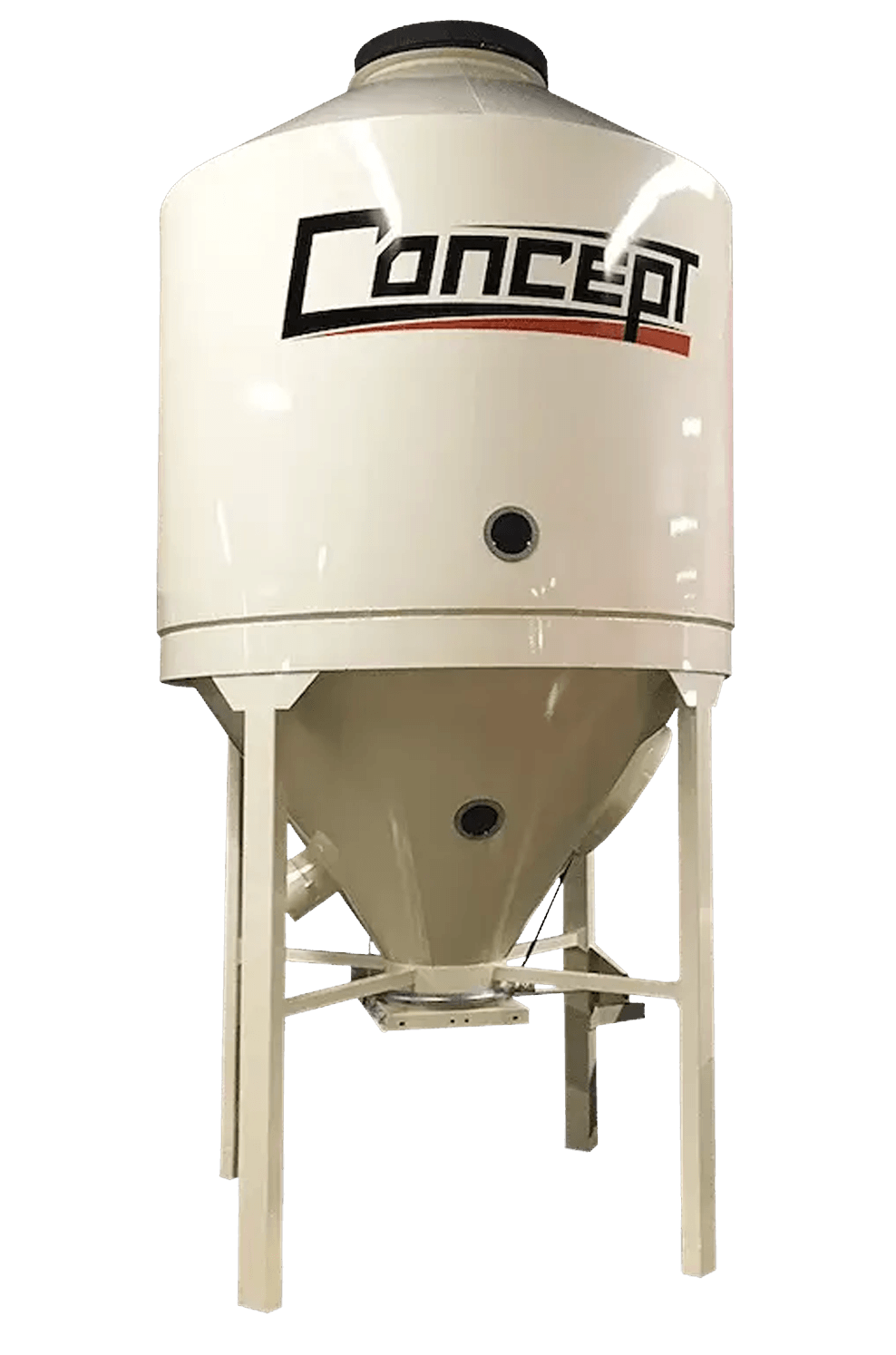

- 27″ Top opening with 29″ spring-loaded lid
- Constructed with minimum 12 gauge steel
- Industrial grade liquid paint coating
- Ladder with safety grip
- Adjustable rack & pinion slide gate assembly
- 36″ Discharge clearance
- Up to 7500 bushels
Concept’s standard of paint quality is unmatched in the smooth wall bin industry. Utilizing a 2 coat liquid paint process ensures a long lasting and beautiful aesthetic as well as highly protective finish.
Boasting superior salt spray ratings and better edge protection to prevent rust; liquid paint provides a smooth finish and increases product flow, keeping the inside of your Concept bin clean.
Every Concept bin goes through our 3-step wash & clean process, ensuring the steel is 100% free of contaminants and etched to maximize adhesion and shine. We regularly perform audits on our process to ensure that every step of the process is up to spec.
Model | Bushels | Cubic Ft. | Imperial Tons | Metric Tonnes | Bin Height | No. of Legs |
---|---|---|---|---|---|---|
7' Diameter, 35 Degree Roof, 55 Degree Hopper | ||||||
705 | 255 | 300 | 6 | 5.4 | 14'3 | 4 |
710 | 419 | 492 | 9.9 | 8.9 | 19'3 | 4 |
8' Diameter, 35 Degree Roof, 55 Degree Hopper | ||||||
805 | 335 | 442 | 6.9 | 8.1 | 14'6 | 4 |
810 | 547 | 644 | 12.9 | 11.7 | 19'6 | 4 |
815 | 759 | 895 | 22.9 | 16.2 | 24'6 | 4 |
9' Diameter, 35 Degree Roof, 55 Degree Hopper | ||||||
905 | 441 | 520 | 10.5 | 9.4 | 15'6 | 6 |
910 | 712 | 838 | 16.8 | 15.2 | 20'6 | 6 |
915 | 983 | 1156 | 23.1 | 21 | 25'6 | 6 |
10' Diameter, 35 Degree Roof, 55 Degree Hopper | ||||||
1005 | 569 | 671 | 13.5 | 12.2 | 16'8 | 6 |
1010 | 903 | 1063 | 21.3 | 19.3 | 21'8 | 6 |
1015 | 1237 | 1455 | 29.1 | 26.4 | 26'8 | 6 |
12' Diameter, 35 Degree Roof, 55 Degree Hopper | ||||||
1205 | 806 | 949 | 29 | 27 | 17' | 6 |
1210 | 1287 | 1514 | 47 | 43 | 22' | 6 |
1215 | 1768 | 2080 | 64 | 58 | 17' | 6 |
